MV-40
Model:MV-40
Phase:
Stage:
Frequency: (HZ)
Power: (kw)
Voltage: (V)
Current: (A)
AirFlow: (m3/h)
Vacuum: (mBar)
Pressure: (mBar)
Sound: (Db)
Weight: (kg)
Dimensions(L*W*H): (mm)
Product Details
Product Overview

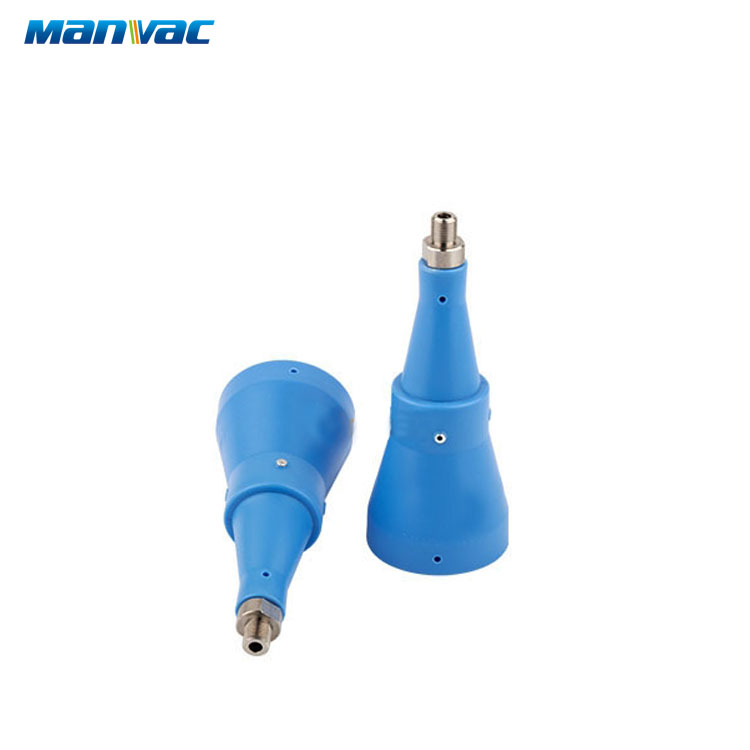

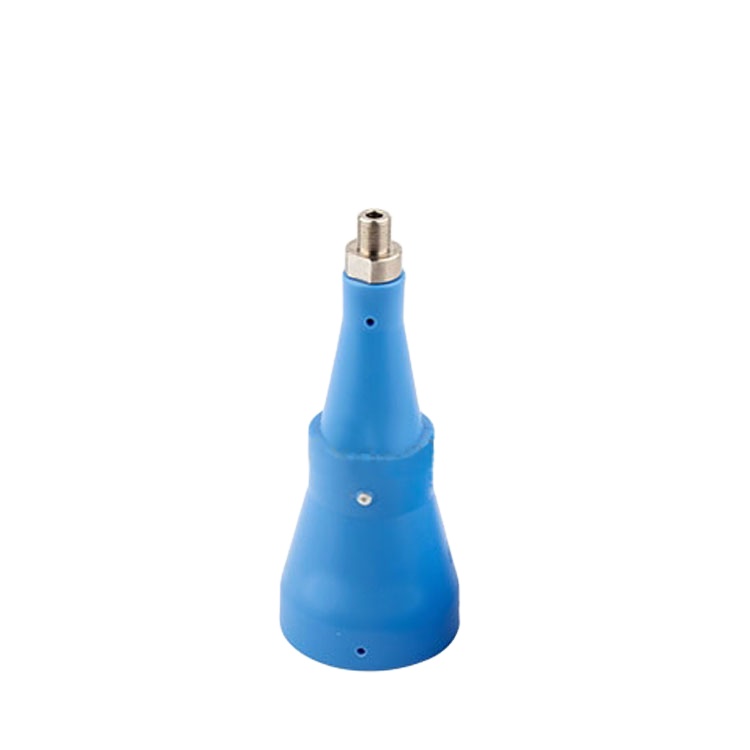

New product large-wind rotary spray gun glass bottle blow-drying nozzle
Manvac Air Gun is the products whch expand the range of airblow of jetting exit due to hig h speed rotation alongin side of cover the range is expanded but the effect can not be reduced.Air can be increased rather due to impackt shock wave.
FEATURES AT A GLANCE
Intermittent Shock Wave
(not continuous Air Blow)
Hitting Stronger Effects
(not Pushing Effects)
EfficientDe-Watering&-Oiling
Less Air consumption & Reduction of Treatment Time
Basic style
Air knife type
Air gun type
PRODUCT SPECIFICATIONS
Model
Air flow
Air pressure
Temperature
Using flow volume
Ari gun
MV-40
0.1~0.11 m3/min
0.4~0.45Mpa
10~40°C
Air Volume 100NL/min(0.4Mpa)
Flixed piping
MV-40
0.1~0.11 m3/min
0.3~0.35Mpa
10~40°C
Air Volume 100NL/min(0.4Mpa)
Model:MV-40(unittype)
Connection:1/8’’Gthread Size

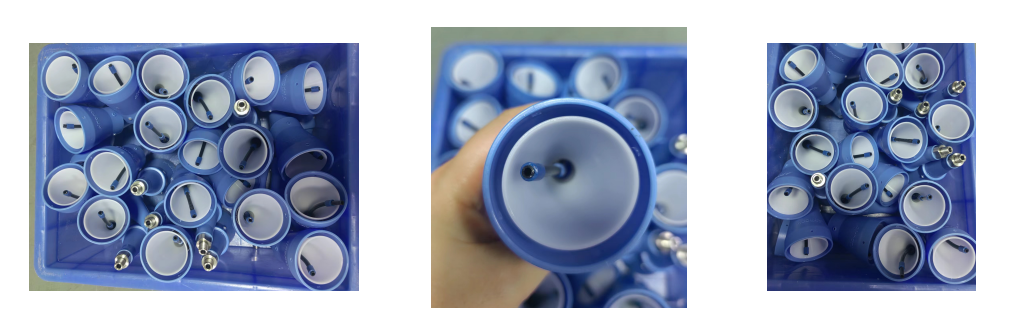

Pattern

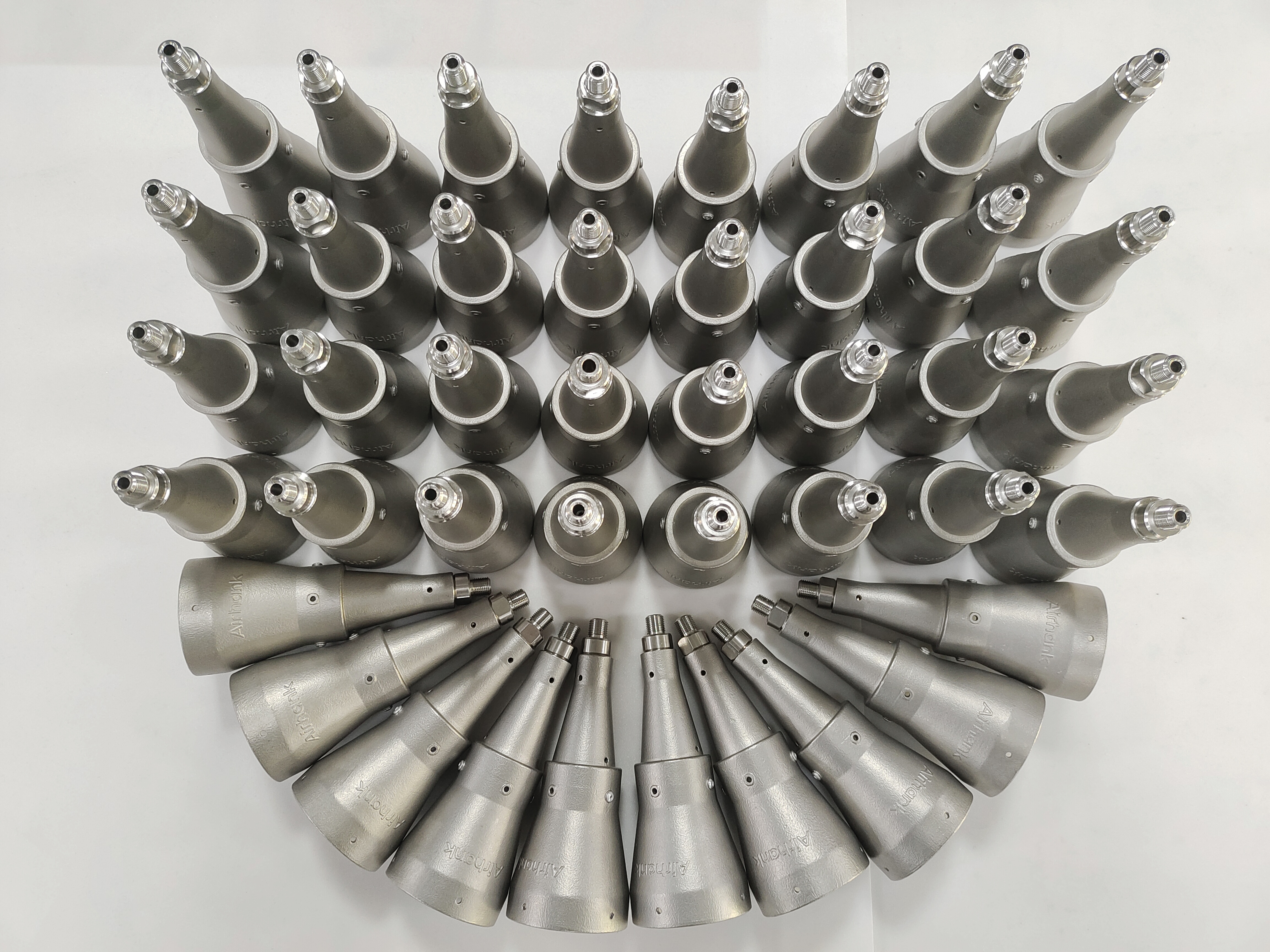

Plastic and stainless steel

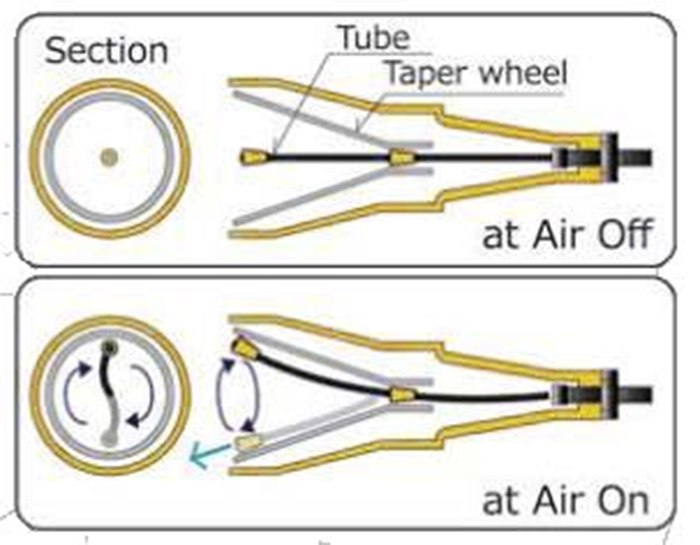

Movem entexplanation of Air blow gun (at start of shock wave)
When you feed air,Tube starts to move by the pressure and to rotate along inside wall of taper wheel. When you touch jetting mouth of Manvac air blow gun by your hand you feel intermittent hitting of air. lt is shock wave.
Shock wave generated by rotation of tube generates air impact power of same rotation as tube rotation(MV series:20rotations/sec or
more) Taper wheel (white cover)is a part which makes synchronous rotation with nozzle tube By this synchronous rotation you can reduce frictional resistance and protect the generation of dust and consumption .
