Product Details

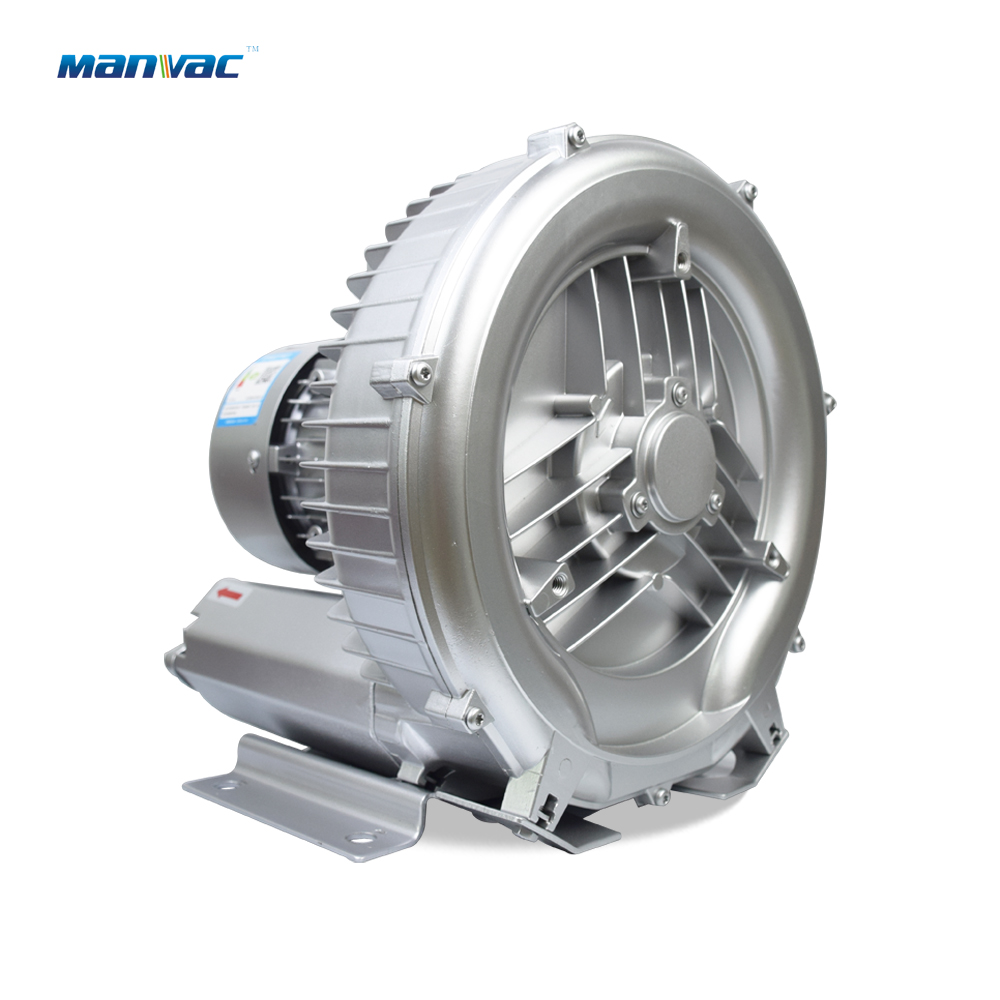

Manvac High Pressure Blower Functional Features:

 1. Light weight high pressure big volume low noise.

 2. Aluminum alloy material, greatly reduce weight, achieve the goal of lightweight.
 3. Design ( 1 HP motor for I . E. C above ) , full close outer fan type aluminum frame,
     motor axis of special design, can be suitable for long time use.
 4. Special blade design, high pressure, big air volume, low noise, long service life.

Blower,Radial Compressor Applications:



1. Printing Machines
2. Burning Machines
3. Plastic Extruders, Laminating, Film Making Machines
4. Uniform Temperature Equipment
5. Household Machines
6. Dust Collectors
7. Textile Machines
8. Pollution Machines
9. Hot Air Blowers
10. Dryers Machines
11. Incinerators
12. Machinery for the Food and Beverage Industries
13. Machinery for Cooling
14. Woodworking Machines
15. Grain Elevators

Model  Phase

Frequency

(Hz)

Power

(KW)

Voltage

(V)

Max airflow

(m3/h)

Max pressure

(mbar)

Max vacuum

(mbar)

Weight

(KG)
three phase blower
2MV 210 H16 3 50 0.4 220-240 80 130 -120 18
60 0.5 220-240 98 160 -150
2MV 310 H16 3 50 0.75 220-240 100 150 -150 20
60 0.83 220-240 120 140 -140
2MV 410 H26 3 50 1.3 220-240 145 200 -170 25
60 1.5 220-275 175 220 -210
2MV 510 H16 3 50 1.3 200-240 210 170 -170 30
60 1.5 220-275 255 140 -150
2MV 510 H26 3 50 1.6 200-240 210 190 -200 31
60 2.05 220-275 255 210 -220
2MV 510 H36 3 50 2.2 200-240 210 270 -220 32
60 2.55 220-275 255 290 -260
2MV 710 H06 3 50 1.6 200-240 318 150 -160 35
60 2.05 220-275 376 150 -160
2MV 710 H16 3 50 2.2 200-240 318 200 -210 38
60 2.55 220-275 376 200 -210
2MV 710 H26 3 50 3.0 200-240 318 290 -270 44
60 3.45 220-275 376 230 -250
2MV 710 H37 3 50 4.0 345-415 318 330 -290 48
60 4.6 380-480 376 330 -230
