Product Details

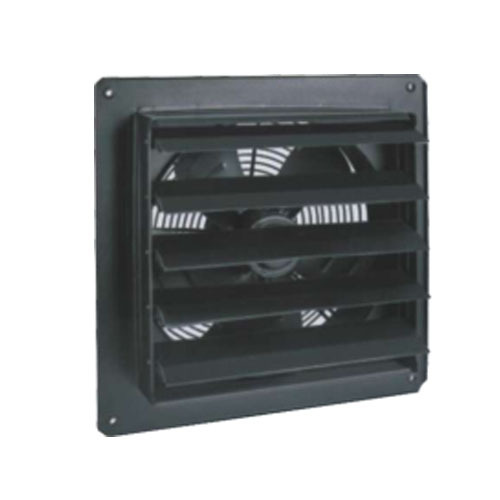

 YWF-BY louver

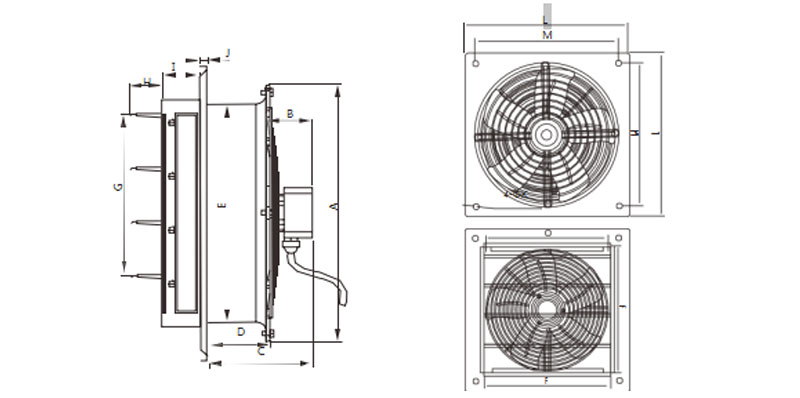

Schematic diagram




The main parameters

Model Features A B C D E F G H
YWF2/4-E/D-300 -BY 380 65 145 80 315 322 322 45
YWF2E/D-400 -BY 470 70 170 100 415 422 322 80
YWF4E/D-400 -BY 470 70 150 80 415 422 322 80

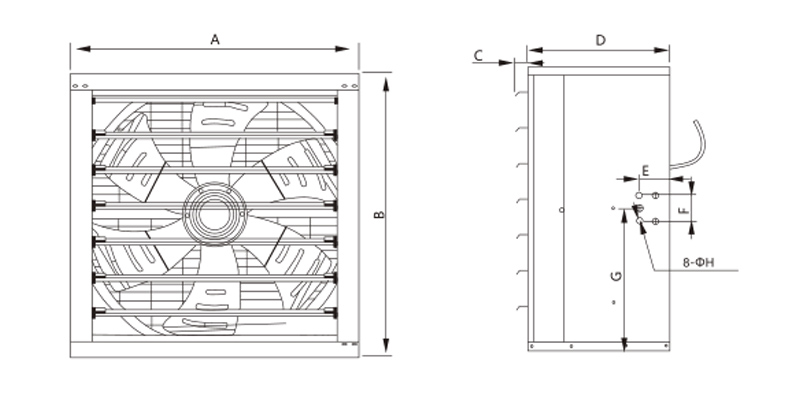

Schematic diagram



The main parameters


Model Features A B C D E F G H
YWF4E/D-400 -BY 475 475 35 325 85 73 237.5 8
YWF4E/D-500 -BY 575 575 35 325 85 73 287.5 8
YWF4E/D-600 -BY 675 675 35 325 85 73 337.5 8
YWF4E/D-700 -BY 800 800 35 400 85 73 400 8
YWF4E/D-800 -BY 900 900 50 400 85 73 500 8
