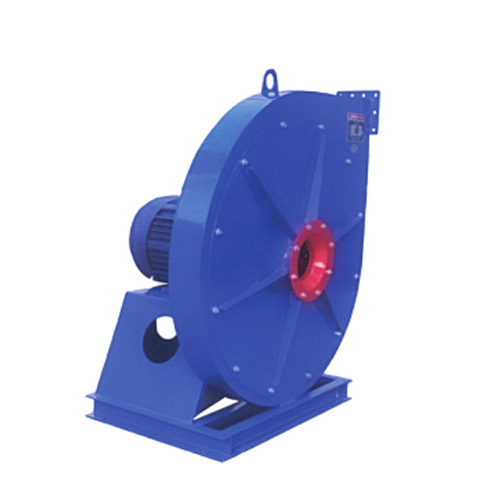

Type 8-09, 9-12 high-pressure centrifugal blower

8 - 0 9 , 9 - 1 2 type iron furnace special high-pressure centrifugal blower, suitable for 1 ~7 L/h melting rate of iron furnace blower performance requirements. The blower can also be used as the blower air of various furnaces and forging furnaces, and is also suitable for transporting non-corrosive, non-spontaneous combustion and non-viscous gases. The temperature of the conveying medium does not exceed 80 °C, and the dust and hard fine particles contained in the medium are not more than 150mg/m³.

The main parameters

Number（No.）	rotate speed(r/min)	Equipped with motor(Kw-p)	flow rate(m³/h)	Full pressure(Pa)
6.8A	2930	2-15	1700-2620	11590-12000
	2930	18.5-2	3080-3540	12140-12120
	2930	2-22	4000-4460	11980-11740
7.1A	2900	2-15	2074-2658	12347-12661
	2900	18.5-2	3000-3242	12807-12896
	2900	2-22	3826	13024
	2900	30-2	4410-4990	12935-12739
7.7A	2900	2-22	2349-3010	14543-14887
	2900	30-2	3671-4332	15171-15319
	2900	37-2	4993-5654	15220-14985
	2900	45-2	6315	14583
8D	2950	30-2	2996-3824	16216-16528
	2950	37-2	4651	16931
	2950	45-2	5478-6306	17096-16931
	2950	55-2	7133	16729
9D	2970	45-2	4295	20803
	2970	55-2	5481	21202
	2970	75-2	6667-7853	21719-21931
	2970	90-2	9039	21719
