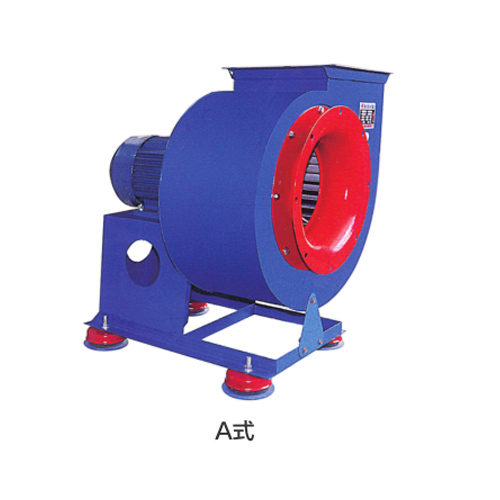

 Model 11-62 A/E high-efficiency centrifugal blower


The low-noise multi-wing centrifugal blower of type 11-62 is designed to meet the needs of the increasingly developing purification industry and environmental protection noise reduction. The fan adopts a multi-objective optimization design method of noise, efficiency and various aerodynamic parameters in the design to achieve the best performance matching of the whole machine and has good aerodynamic performance. The impeller and pulley are strictly corrected by dynamic balance, so the operation is stable, low noise, small vibration, long life and other characteristics. It is widely used in kitchen exhaust, oil smoke or ventilation in public places such as canteens, hotels, restaurants, restaurants, etc., and is suitable for use in food machinery, chemical machinery, plastic machinery and other production equipment.

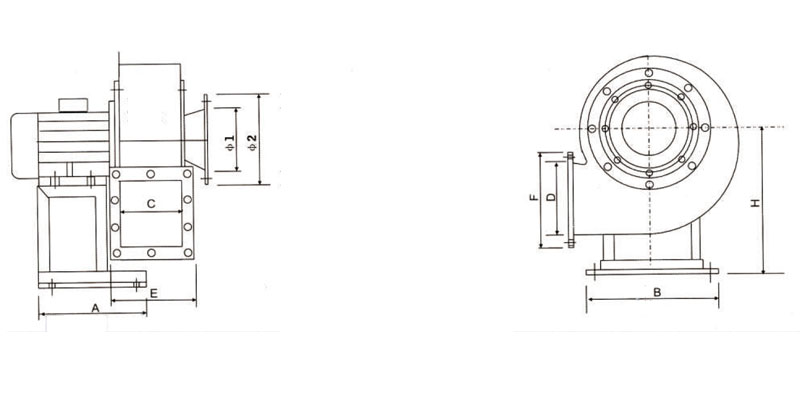

Schematic diagram



The main parameters

Number

rotate speed(r/min)

Equipped with motor(Kw-p)

flow rate(m³/h)

Full pressure(Pa)

2.5A

1450

0.75-4

1300-3300

450-350

2.8A

1450

1.1-4

2200-5600

570-440

960

0.55-6

1430-3600

240-230

3A

1450

2.2-4

4000-7000

600-500

960

0.75-6

1800-4850

270-230

3.2A

1450

3.0-4

3400-8900

760-570

960

1.1-6

2180-5700

310-230

3.5A

1450

4.0-4

4500-9900

910-700

960

1.5-6

2900-6400

380-290

4A

960

3.0-6

4445-11800

522-430

4.5A

960

4.0-6

6500-15000

650-500

5A

960

5.5-6

8680-19300

815-640

6A

960

7.5-6

10425-21473

1170-887

Number

A

B

C

D

E

F

1

2

G

H

2.5A

300

420

240

192

300

252

250

310

215

330

2.8A

345

520

270

275

330

335

280

330

240

360

3A

365

570

290

275

350

335

280

330

230

440

3.2A

365

570

310

275

370

335

320

370

255

440

3.5A

405

600

350

275

410

335

350

410

295

452

4A

425

670

380

310

460

390

400

460

320

482

4.5A

425

670

390

310

470

390

450

510

336

552

5A

425

670

450

310

530

390

500

560

365

622

6A

525

740

470

310

550

390

600

660

420

690
