Product Details

  Product Description



Features

1. The lower die is fixed and the upper die is mobile, which has good positioning for insert items and automatically carriesout the finished products.
2.Low pressure die opening device, protect die and personal safety.
3. 2-3-4 section temperature control, fire rate, back pressure, screw speed without section adiustment,suitable for allkinds of precision plastic parts forming.
4. Single/double sliding plate, disc and so on can be added to improve operation safety and work efficiency.
5. Servo svstem is used to save energy, Environmental protection, high eficiency and stability, the servo motor saves30%-80% energy than the ordinary type ofenergy-saving motor.

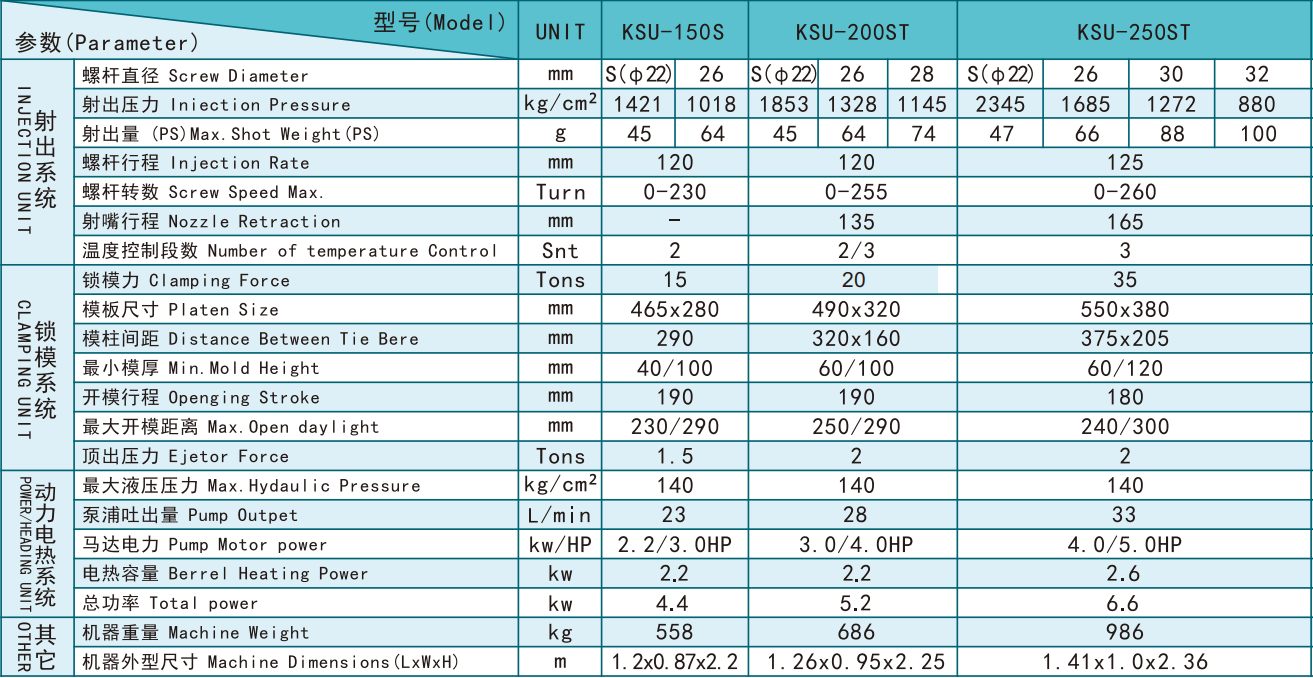

Specification



Packing & Delivery



To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Suitable for all kinds of thermoplastics:

PVC, TPR, TPE, PE, PBT, PC, PS. PP, PU, PA, POM, PMMA, PET, PPO, PPS, ABS, LCP, acrylic, melamine, 372, nylon, polypropylene, polystyrene, etc.

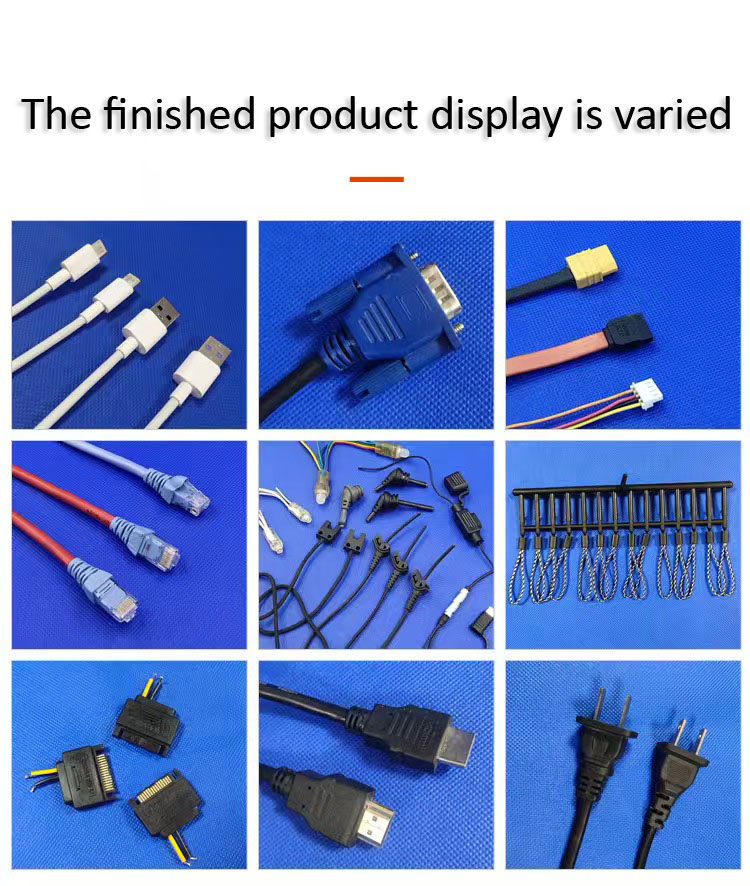

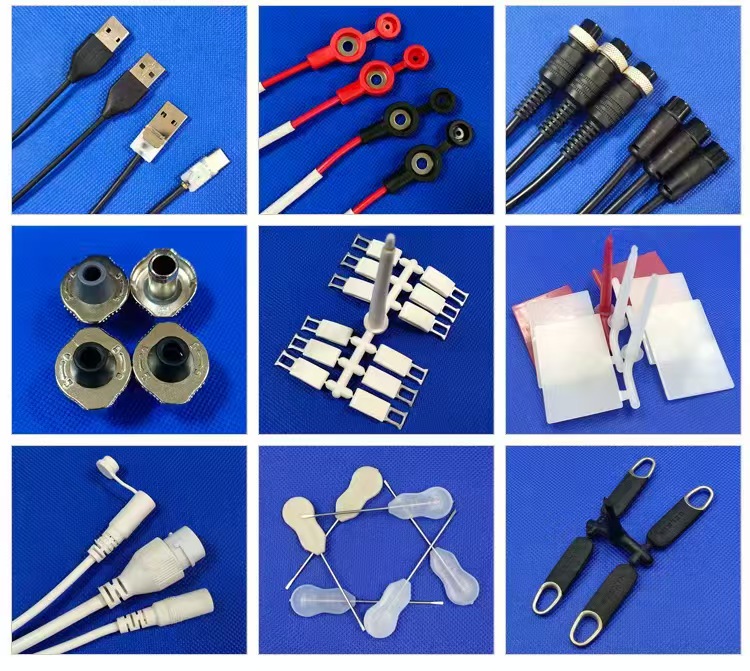

Applicable to a wide range of industries: data cables, USB, headphone cables, audio cables, VGA, HDMI, network cables, connectors, plugs, switches, sockets, chargers, electrical appliances, instruments, lampshades, chassis, baby toys, jewelry, golf, corsage, antennas, badges, buttons, like private, surface, small building materials, plug-ins, telecommunications, key chains, toys, tool shells, lenses, cams, zippers, daily products and other parts injection molding.
