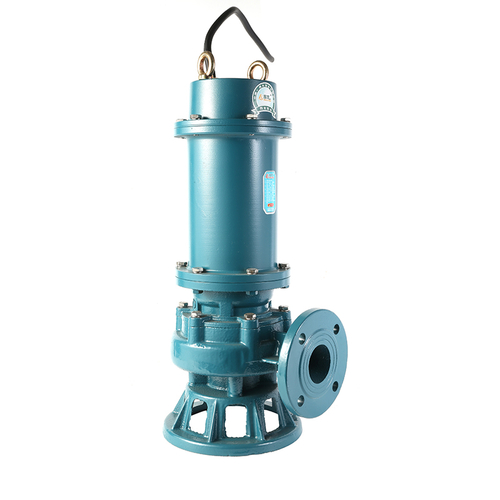

Model:WQ/QW Submersible Sewage Pump

Phase:
Stage:
Frequency: (HZ)
Power: (kw)
Voltage: (V)
Current: (A)
AirFlow:5 (m3/h)
Vacuum: (mBar)
Pressure: (mBar)
Sound: (Db)
Weight: (kg)

Dimensions(L*W*H): (mm)

Product Details

Product description:

WQ series submersible sewage pump is composed of water pump, seal and motor. The motor is located in the upper partand is divided into single-phase and three-phase asynchronous motors. Used between pump and motor double- -end mechanicalseal, each fixed end seal is sealed with O-type oil- resistant rubber sealing ring for static sealing. The mechanical seal of key parts adopts cemented carbide and high-quality silicon carbide as material, the shaft is made of 45 # steel or stainless steel, to ensure the shaft has reliable mechanical strength and certain wear resistance and corrosion resistance.

The stator of the high- power sewage pump is embedded with a thermal control switch. Normal temperature is "normally closed" state, when the stator temperature reaches 125C, the switch opens. A water leakage probe is installed in the oil chamber for water leakage detection. The signal line of the oil and water intake probe is connected.Connect any line to the leakage circuit breaker; when the mechanical seal on the pump side leaks and the oil- -water ratio in the oil chamber reaches a certain concentration, the oil-water probe will send an alarm signal and the power supply is cut off and the pump stops working automatically.

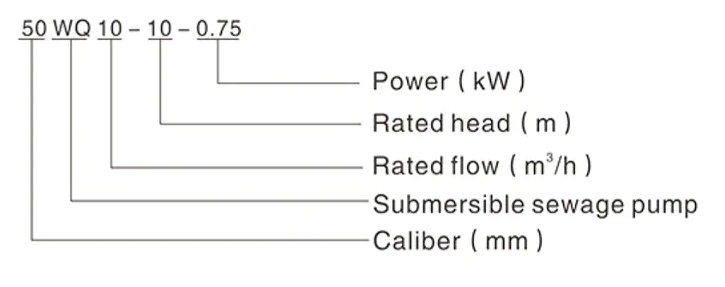

Model meaning:

Table of performance parameters

N0.	Model	Rated flow	Rated head	Power	outlet	Speed
N0.	Model	(m3/h)	(m)	(kW)	mm)	(r/min)
1	25WQ5-18-0.75	5	18	0.75	25	2900
2	32WQ6-16-0.75	6	16	0.75	32	2900
3	40WQ7-15-0.75	7	15	0.75	40	2900
4	50WQ10-10-0.75	10	10	0.75	50	2900
5	65WQ15-7-0.75	15	7	0.75	65	2900
6	25WQ8-18-1.1	8	18	1.1	25	2900
7	32WQ12-15-1.1	12	15	1.1	32	2900
8	40WQ7-18-1.1	7	18	1.1	40	2900
9	50WQ9-15-1.1	9	15	1.1	50	2900
10	65WQ15-9-1.1	15	9	1.1	65	2900
11	50WQ15-15-1.5	15	15	1.5	50	2900
12	50WQ20-15-1.5	20	15	1.5	50	2900
13	65WQ25-7-1.5	25	7	1.5	65	2900
14	80WQ40-8-1.5	40	8	1.5	80	2900
15	50WQ15-20-2.2	15	20	2.2	50	2900
16	65WQ20-15-2.2	20	15	2.2	65	2900
17	65WQ25-15-2.2	25	15	2.2	65	2900
18	80WQ40-10-2.2	40	10	2.2	80	2900
19	50WQ15-30-3	15	30	3	50	2900
20	65WQ37-13-3	37	13	3	65	2900
21	80WQ45-12-3	45	12	3	45	2900
22	100WQ60-9-3	60	9	3	60	2900

No.	Model	Rated flow	Rated head	Power	Outlet	Speed
No.	Model	( m3/h )	(m)	(kW)	(mm)	(r/min)
23	50WQ15-35-4	15	35	4	50	2900
24	50WQ40-15-4	40	15	4	50	2900
25	65WQ20-25-4	20	25	4	65	2900
26	80WQ40-15-4	40	15	4	80	2900
27	100WQ60-12-4	60	12	4	100	2900
28	50WQ20-40-5.5	20	40	5.5	50	2900
29	65WQ25-35-5.5	25	35	5.5	65	2900
30	80WQ30-30-5.5	30	30	5.5	80	2900
31	100WQ65-18-5.5	65	18	5.5	100	2900
32	50WQ20-45-7.5	20	45	7.5	50	2900
33	65WQ30-40-7.5	30	40	7.5	65	2900
34	65WQ40-30-7.5	40	30	7.5	65	2900
35	80WQ65-25-7.5	65	25	7.5	80	2900
36	100WQ80-15-7.5	80	15	7.5	100	2900
37	150WQ100-15-7.5	100	15	7.5	150	2900
38	50WQ20-60-11	20	60	11	50	2900
39	65WQ30-50-11	30	50	11	65	2900
40	80WQ40-40-11	40	40	11	80	2900
41	100WQ80-25-11	80	25	11	100	2900
42	150WQ150-12-11	150	12	11	150	2900
43	200WQ200-9-11	200	9	11	200	2900
44	50WQ30-60-15	30	60	15	50	2900

Table of performance parameters

N0.	Model	Rated flow	Rated head	Power	outlet	Speed
N0.	Model	(m3/h)	(m)	(kW)	mm)	(r/min)
45	65WQ35-55-15	35	55	15	65	2900
46	80WQ45-52-15	45	52	15	80	2900
47	100WQ60-45-15	60	45	15	100	2900
48	150WQ150-20-15	150	20	15	150	2900
49	200WQ250-11-15	250	11	15	200	2900
50	50WQ20-80-18.5	20	80	18.5	50	2900
51	65WQ30-68-18.5	30	68	18.5	65	2900
52	80WQ60-45-18.5	60	45	18.5	80	2900
53	100WQ80-40-18.5	80	40	18.5	100	2900
54	150WQ100-36-18.5	100	36	18.5	150	2900
55	200WQ180-18-18.5	180	18	18.5	200	2900
56	50WQ20-90-22	20	90	22	50	2900
57	65WQ30-75-22	30	75	22	65	2900
58	80WC60-50-22	60	50	22	80	2900
59	100WQ80-45-22	80	45	22	100	2900
60	150WQ100-40-22	100	40	22	150	2900
61	200WQ200-20-22	200	20	22	200	2900
62	100WQ110-10-5.5	110	10	5.5	100	1450
63	150WQ140-7-5.5	140	7	5.5	150	1450
64	100WQ100-15-7.5	100	15	7.5	100	1450
65	150WQ145-9-7.5	145	9	7.5	150	1450
66	100WQ100-25-11	100	25	1	100	1450
67	150WQ130-15-11	130	15	11	150	1450
68	200WQ300-7-11	300	7	11	200	1450
69	250WQ400-5-11	400	5	11	250	1450
70	100WQ100-30-15	100	30	15	100	1450
71	150WQ180-15-15	1B0	15	15	150	1450
72	200WQ220-12-15	220	12	15	200	1450
73	250WQ500-5-15	500	5	15	250	1450
74	100WQ100-35-18.5	100	35	18.5	100	1450
75	150WQ180-20-18.5	180	20	18.5	150	1450
76	200WQ250-15-18.5	250	15	18.5	200	1450
75	250WQ400-7-18.5	400	7	18.5	250	1450
78	300WQ650-5-18.5	650	5	18.5	300	1450
79	100WQ100-40-22	100	40	22	100	1450
80	150WQ200-22-22	200	22	22	150	1450
81	150WQ180-25- 22	180	25	22	150	1450
82	200WQ300-15-22	300	15	22	200	1450
83	200WQ400-10-22	400	10	22	200	1450
84	250WQ500-7-22	500	7	22	250	1450

No.	Model	Rated flow	Rated head	Power	Outlet	Speed
No.	Model	( m3/h )	(m)	(kW)	(mm)	(r/min)
85	300WQ650-7-22	650	7	22	300	1450
86	100WQ120-45-30	120	45	30	100	1450
87	150WQ180-30-30	180	30	30	150	1450
88	150WQ250-22-30	250	22	30	150	1450
89	200WQ400-13-30	400	13	30	200	1450
90	250WQ600-9-30	600	9	30	250	1450
91	300WQ800-7-30	800	7	30	300	1450
92	100WQ120-50-37	120	50	37	100	1450
93	150WQ200-30-37	200	30	37	150	1450
94	200WQ350-25-37	350	25	37	200	1450
95	250WQ600-12-37	600	12	37	250	1450
96	300WQ800-10-37	800	10	37	300	1450
97	350WQ1000-6-37	1000	6	37	350	1450
98	350WQ1100-6-7	1100	6	37	350	960
99	400WQ1300-6-37	1300	6	37	400	980
100	100WQ100-57-45	100	57	45	100	1450
101	150WQ200-35-45	200	35	45	150	1450
102	200WQ300-32-45	300	32	45	200	1450
103	200WQ400-25-45	400	25	45	200	1450
104	250WQ600-15-45	600	15	45	250	1450
105	300WQ800-12-45	800	12	45	300	1450
106	350WQ1200-8-45	1200	8	45	350	1450
107	350WQ1300-8-45	1300	8	45	350	980
108	400WQ1700-6-45	1700	6	45	400	980
109	100WQ100-65-55	100	65	55	100	1450
110	150WQ200-50-55	200	50	55	150	1450
111	200WQ400-30-55	400	30	55	200	1450
112	200WQ300-40-55	300	40	55	200	1450
113	250WQ600-20-55	600	20	55	250	1450
114	300WQ800-15-55	800	15	55	300	1450
115	350WQ1000-10-55	1000	10	55	350	1450
116	350WQ1100-10-55	1100	10	55	350	980
117	400WQ1500-8-55	1500	8	55	400	980
118	500WQ2200-5-55	2200	5	55	500	980
119	100WQ120-75-75	120	75	75	100	1450
120	150WQ200-57-75	200	57	75	150	1450
121	200WQ350-45-75	350	45	75	200	1450
122	250WQ600-25-75	600	25	75	250	1450
123	300WQ800-20-75	800	20	75	300	1450
124	350WQ1000-15-75	1000	15	75	350	1450

Table of performance parameters

N0.	Model	Rated flow	Rated head	PoWer	outlet	Speed
N0.	Model	(m3/h)	(m)	(kW)	(mm)	(r/min)
125	350WQ1500-12-75	1500	12	75	350	980
126	400WQ1700-10-75	1700	10	75	400	980
127	500WQ2000-8-75	2000	8	75	500	980
128	100WQ120-85-90	120	85	90	100	1450
129	150WQ200-65-90	200	65	90	150	1450
130	200WQ300-55-90	300	55	90	200	1450
131	250WQ600-30-90	600	30	90	250	1450
132	300WQ800-25-90	800	25	90	300	1450
133	350WQ1000-18-90	1000	18	9	350	1450
134	350WQ1200-18-90	1200	18	90	350	980
135	400WQ1500-15-90	1500	15	90	400	980
136	500WQ2000-10-90	2000	10	90	500	980
137	100WQ100-100-11	100	100	110	100	1450
138	150WQ180-80-110	180	80	110	150	1450
139	200WQ300-65-110	300	65	110	200	1450
140聽	250WQ600-35-110	600	35	110	250	1450
141	300WQ1000-25-110	1000	25	110	300	1450
142	350WQ1300-20-110	1300	20	110	350	1450
143	350WQ1600-16-110	1600	16	110	350	980
144	400WQ1800-15-110	1800	15	110	400	980
145	500WQ2500-10-110	2500	10	110	500	980
146	150WQ200-90-132	200	90	132	150	1450
147	200WQ400-75-132	400	75	132	200	1450
148	250WQ600-40-132	600	40	132	250	1450
149	300WQ800-36-132	800	36	132	300	1450
150	350W1100-28-132	1100	28	132	350	1450
151	400WQ1700-16-132	1700	16	132	400	1450
152	400WQ2000-15-132	2000	15	132	400	980
153	500WQ2800-10-132	2800	10	132	500	980
154	500WQ3100-10-132	3100	10	132	500	740
155	600WQ3700-8-132	3700	8	132	600	980
156	600WQ4000-8-132	4000	8	132	600	740
157	150WQ220-10-160	220	100	160	150	1450
158	200WQ400-85-160	400	85	160	200	1450
159	250WQ600-60-160	600	60	160	250	1450
160	300WQ800-40-160	800	40	160	300	1450
161	350WQ1000-35-160	1000	35	160	350	1450
162	400WQ1600-22-160	1600	22	160	400	1450
163	400WQ2000-18-160	2000	18	160	400	980
164	500WQ2300-16-160	2300	16	160	500	1450

No.	Model	Rated flow	Rated head	Power	Outlet	Speed
No.	Model	( m3/h )	(m)	(kW)	(mm)	(r/min)
165	500WQ2600-16-160	2600	16	160	500	980
166	500WQ3000-14-160	3000	14	160	500	740
167	600WQ3700-10-160	3700	10	160	600	980
168	800WQ4000-10-160	4000	10	160	600	740
169	150WQ200-10-15	200	110	185	150	1450
170	200WQ400-90-185	400	90	185	200	1450
171	250WQ600-70-185	600	70	185	250	1450
172	300WQ900-40-185	900	40	185	300	1450
173	350WQ1100-38-185	1100	38	185	350	1450
174	400WQ1600-25-185	1600	25	185	400	1450
175	400WQ2000-20-185	2000	20	185	400	980
176	500WQ2200-18-185	2200	16	185	500	1450
177	500WQ3000-15-185	3000	15	185	500	980
178	500WQ3200-15-185	3200	15	185	500	740
179	600WQ3700-12-185	3700	12	185	600	980
180	600WQ4000-12-185	4000	12	185	600	740
181	250WQ700-75-200	700	75	200	250	1450
182	300WQ1000-45-200	1000	45	200	300	1450
183	350WQ1300-35-200	1300	35	200	350	1450
184	400WQ1600-30-200	1600	30	200	400	1450
185	400WQ2300-22-200	2300	22	200	400	980
186	500WQ2500-20-200	2500	20	200	500	1450
187	500WQ3500-15-200	3500	15	200	500	980
188	600WQ4500-12-200	4500	12	200	600	980
189	300WQ1100-45-250	1100	45	250	300	1450
190	350WQ1500-36-250	1500	36	250	350	1450
191	400WQ1800-30-250	1800	30	250	400	1450
192	400WQ2200-28-250	2200	28	250	400	980
193	500WQ3000-21-250	3000	21	250	500	980
194	600WQ4000-18-250	4000	18	250	600	980
195	300WQ1000-55-315	1000	55	315	300	1450
196	350WQ1500-45-315	1500	45	315	350	1450
187	400WQ2000-36-315	2000	36	315	400	1450
198	500WQ3500-25-315	3500	25	315	500	980
199	600WQ4500-20-315	4500	20	315	600	980
200	500WQ3000-35-400	3000	35	400	500	980
201	600WQ5000-22-400	5000	22	400	600	980
202	500WQ4000-32-550	4000	32	550	500	980
203	600WQ5500-25-550	5500	25	550	600	980
