This series of sewage pumps adopts a unique impeller structure and a new type of mechanical seal, which can effectively transport the medium containing solids and long fibers. Compared with the traditional impeller, the impeller of the pump adopts a single-flow channel or double-flow channel model, which is similar to a curved pipe with the same cross-sectional size, and has very good flow capacity. With a reasonable volute chamber, the pump has high efficiency The high and the impeller have been tested for dynamic and static balance, so that the pump has no vibration during operation.

Product Usage:

Used in chemical, petroleum, pharmaceutical, mining, paper industry, cement plants, steel mills, power plants, coal processing industries, and urban sewage treatment plant drainage systems, municipal engineering, construction sites and other industries conveyor belt particles of sewage, waste, It is also suitable for pumping clean water and corrosive media.

Features:

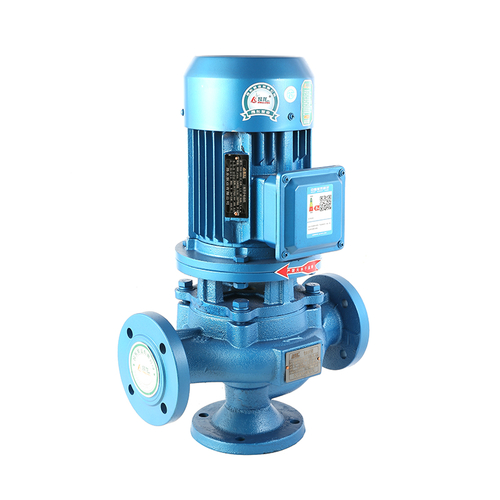

1. The pump is a vertical single-suction single-stage centrifugal sewage pump, the inlet and outlet are on the same horizontal line, and the inlet and outlet flanges are the same, so the installation and disassembly are very convenient, the floor space is small, and it can be installed at any position in the pipeline like a valve .

2. The GW pipeline sewage pump is directly connected to the motor and is a mechatronic product with compact structure and stable performance.

3. The pump adopts the design of large-flow anti-clogging hydraulic components, which greatly improves the dirt passing capacity, and can effectively pass through the larger fibers and larger solid particles of the pump diameter.

4. The design is reasonable, the matching motor is reasonable, the efficiency is high, and the energy saving effect is remarkable.

5. The mechanical seal adopts hard wear-resistant tungsten carbide, which has the characteristics of shochu resistance and wear resistance.

6. The whole machine has high efficiency and low operating noise.

7. A protective cover is added to the fan blade end of the motor, and the whole machine can be placed outdoors to work without the need for a machine room, which can save a lot of infrastructure costs.

8. The overcurrent parts can be customized with 304, 316, 316L stainless steel, and the motor can be customized with explosion-proof models.
