Product Details

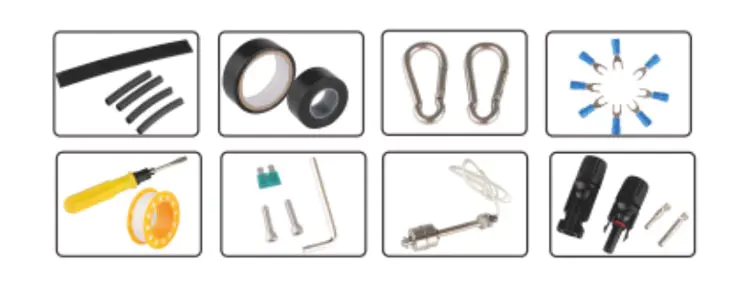

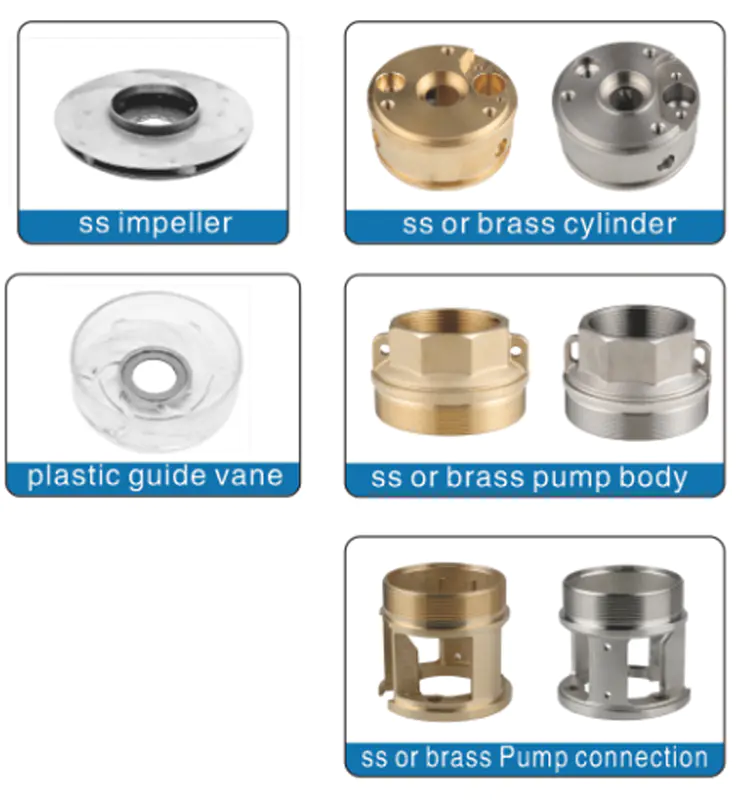

Free spare parts

Advantage of solar water pump

High efficiency because of PMSM

MPPT function

Intelligent water shortage protection

Longer life than normal AC water pump

Over-load protechion, under -load protection,

lock-rotor prolection , thermal proteciton.

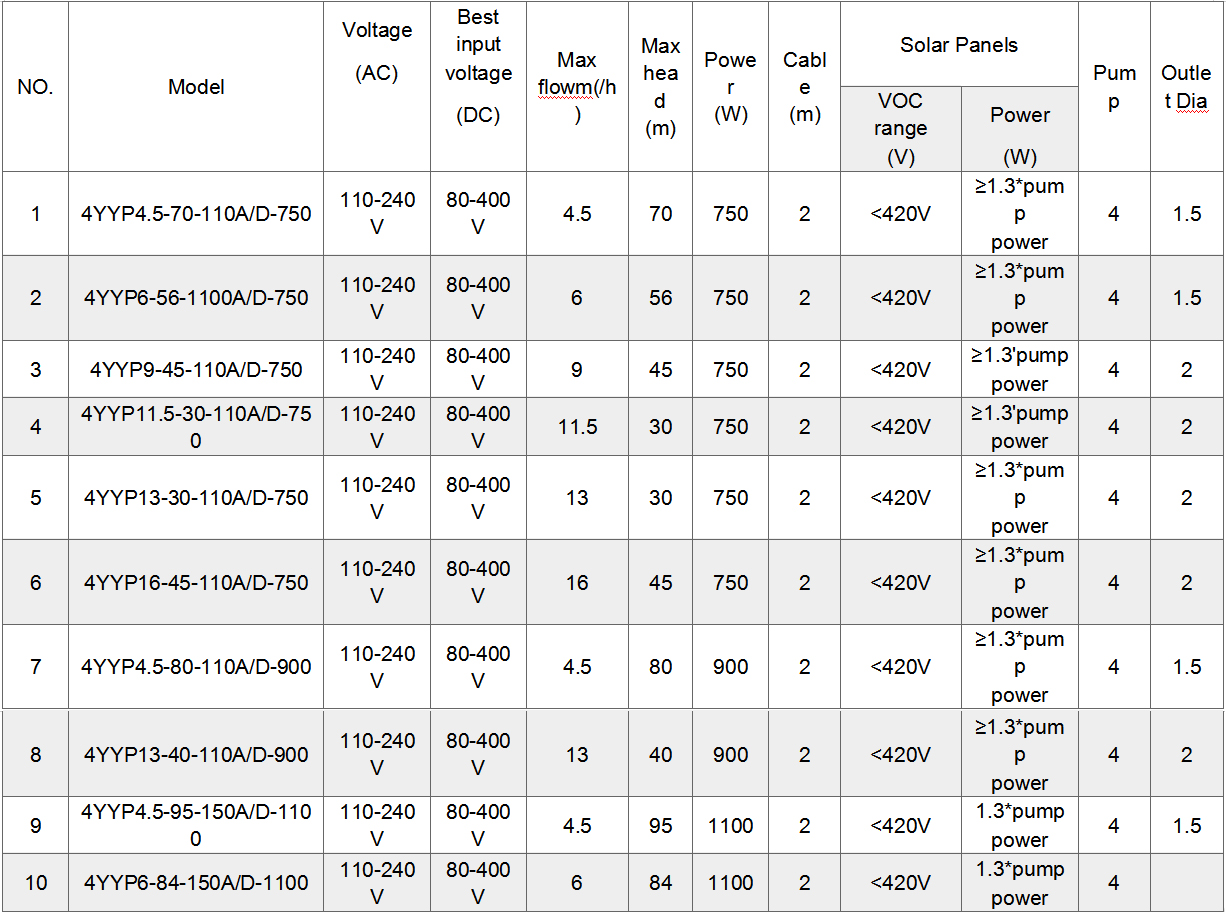

Technical data

NO. Model Voltage Best input Max flowm(/h) Max Power Cable Solar Panels Pump Outlet Dia
(AC) voltage head (W) (m) diameter [inch)
  (DC) (m)     VOC range Power (inch)
          (V) (W)
1 4YYP4.5-70-110A/D-750 110-240V 80-400V 4.5 70 750 2 <420V ≥1.3*pump 4 1.5
power
2 4YYP6-56-1100A/D-750 110-240V 80-400V 6 56 750 2 <420V ≥1.3*pump 4 1.5
power
3 4YYP9-45-110A/D-750 110-240V 80-400V 9 45 750 2 <420V ≥1.3'pump 4 2
power
4 4YYP11.5-30-110A/D-750 110-240V 80-400V 11.5 30 750 2 <420V ≥1.3'pump 4 2
power
5 4YYP13-30-110A/D-750 110-240V 80-400V 13 30 750 2 <420V ≥1.3*pump 4 2
power
6 4YYP16-45-110A/D-750 110-240V 80-400V 16 45 750 2 <420V ≥1.3*pump 4 2
power
7 4YYP4.5-80-110A/D-900 110-240V 80-400V 4.5 80 900 2 <420V ≥1.3*pump 4 1.5
power
8 4YYP13-40-110A/D-900 110-240V 80-400V 13 40 900 2 <420V ≥1.3*pump 4 2
power
9 4YYP4.5-95-150A/D-1100 110-240V 80-400V 4.5 95 1100 2 <420V 1.3*pump 4 1.5
power
10 4YYP6-84-150A/D-1100 110-240V 80-400V 6 84 1100 2 <420V 1.3*pump 4
power
