Product Details

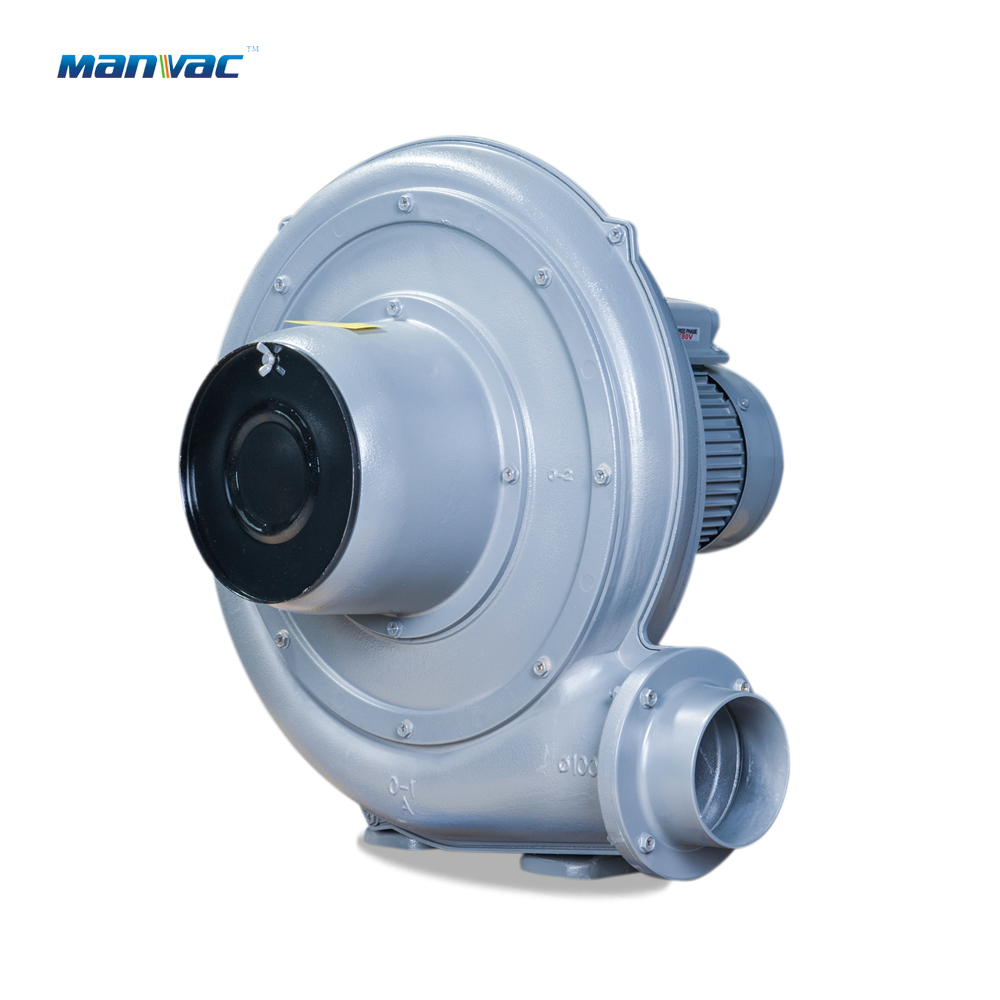

TB Turbo Blower,Radial Blower,Aluminum Centrifugal Blower,Air Blower

Type
Phase		   Power   (KW) Voltage(V) Current(A) Vacuum/Presure    (max)(KPa)      Air Flow(max) (m3/min) In/Out(mm)
Noise Level    (dB)		    Weight    (Kg)
TB100-1 1~ 0.75 220 5 1.3/2.1 18/22 In 200 70/80 21
3~ 220/380 3/2.0 Out 100
TB100-2 1~ 1.5 220 9 2/3 20/25 In 200 70/85 28
3~ 220/380 5.5/3.5 Out 100
TB125-3 3~ 2.2 220/380 8/5 2.4/3.6 33/39 In 252 80/90 37
Out 125
TB150-5 3~ 3.7 220/380 13/7.5 3.8/5.3 48/53 In 252 90/95 52
Out 150
TB150-7.5 3~ 5.5 220/380 19/11.5 4/5.3 50/65 In 252 90/95 73
Out 150
TB150-10 3~ 7.5 220/380 26/15.5 4/5.3 60/75 In 252 90/95 82
Out 150
TB200-15 3~ 11 220/380 36/22 5/6.5 65/85 In 315 95/110 117
Out 200
TB200-20 3~ 15 220/380 47/28 5/7 90/100 In 315 95/110 130
Out 200

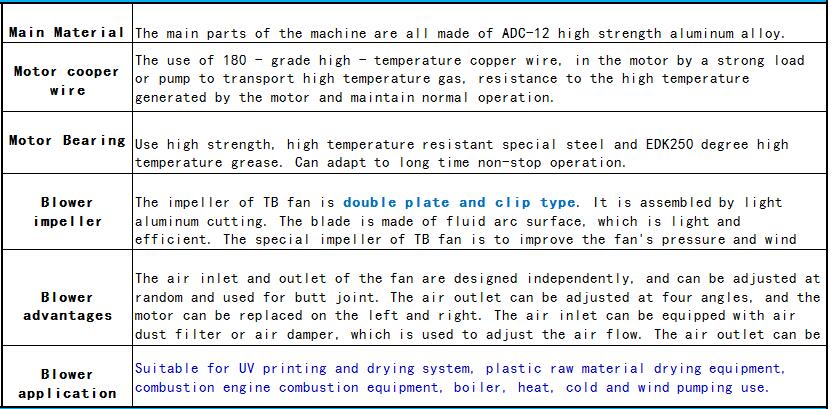

The main parts of the machine are all made of ADc-12 high strength aluminum alloy.

The use of 180- grade high- temperature copper wire, in the motor by a strong loador pump to transport high temperature gas, resistance to the high temperaturegenerated by the motor and maintain normal operation.

Use high strength, high temperature resistant special steel and EDK250 degree hightemperature grease. Can adapt to long time non-stop operation.

The impeller of TB fan is double plate and clip type. lt is assembled by lightaluminum cutting, The blade is made of fluid arc surface, which is light andefficient, The special impeller of TB fan is to improve the fan's pressure and wind

The air inlet and outlet of the fan are designed independently, and can be adjusted atrandom and used for butt joint, The air outlet can be adjusted at four angles, and themotor can be replaced on the left and right.

The air inlet can be equipped with airdust filter or air damper, which is used to adjust the air flow, The air outlet can be
Suitable for UV printing and drying system, plastic raw material drying equipment,combustion engine combustion equipment, boiler, heat, cold and wind pumping use.
